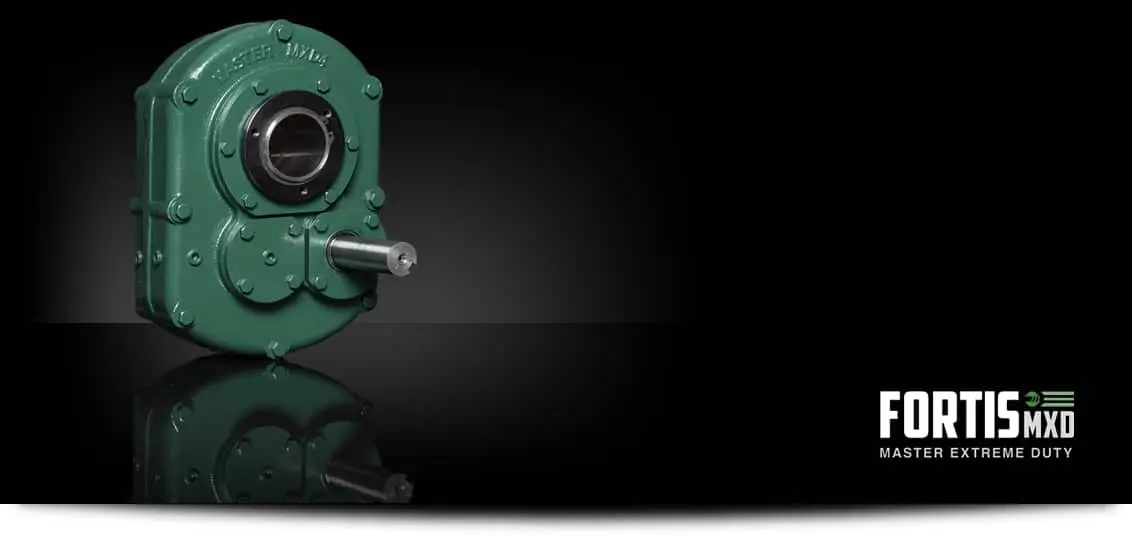

Fortis MXD

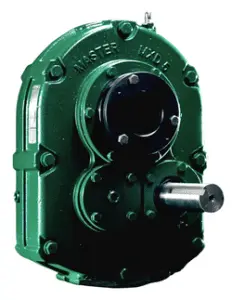

Fortis MXD: Master PT’s Shaft Mount Reducer

Master Power Transmission has answered the challenge to deliver the highest quality shaft mount reducer in the market with the Fortis MXD series gearbox. Fortis MXD features an improved input seal design, ductile iron housing, premium bearings and a premium backstop. A full offering of accessories, including motor mounts, belt guards, CEMA adapter kits, taper bushing kits, and parts are in stock and ready to ship for all sizes.

   All sizes & accessories in stock.    Manufactured in Columbus, IN, USA.
   Highest quality in the market.    Interchanges with common gearboxes.

Features/Benefits:

Improved input seal to combat common leaks.

Ductile iron housing for better shock absorption and superior tensile strength.

Premium bearings provide increased lifespan.

  • Easily Repaired with parts in stock
  • Case carburized and precision finished helical gearing to provide maximum load-carrying capability.
  • Fractional to 150HP
Find a Distributor in Your Area

 Installation Manual        Brochure

What does “Fortis” mean?

Fortis is Latin for Strong/Robust, and this is exactly what Master Power Transmission’s shaft mount gearbox is. Fortis MXD is rugged, reliable, and durable for the harshest conditions.

Gearbox SizeAvailable Ratios
Sizes 1-6 (Taper/Straight bore/Hydraulic & Screw Conveyor)9:1, 15:1 & 25:1
Sizes 7 (Taper/Straight bore/Hydraulic & Screw Conveyor)15:1 & 25:1
Sizes 8 (Taper/Straight bore/Hydraulic)15:1 & 25:1
Sizes 9 (Taper/Straight bore/Hydraulic)15:1 & 26:1
Sizes 10 (Taper/Straight bore/Hydraulic)15:1 & 24:1

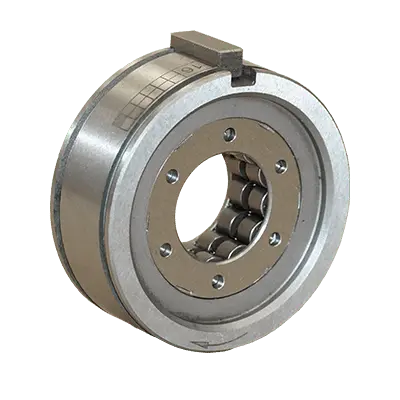

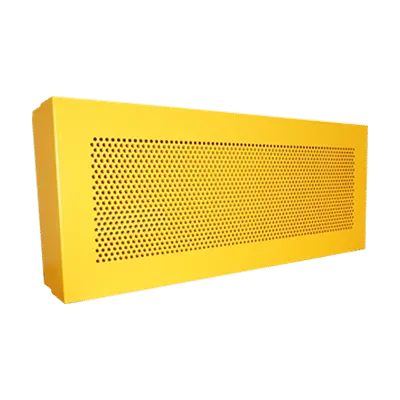

   Backstop                  Belt Guard

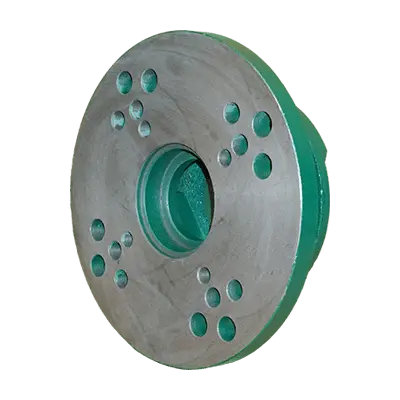

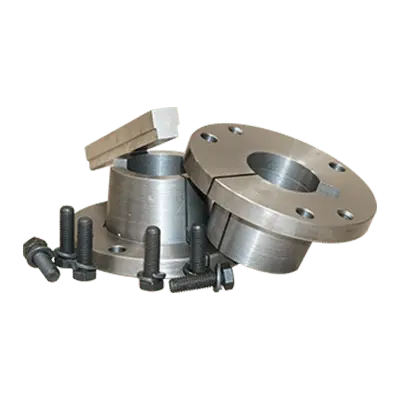

   Bushing Kit            CEMA Adapter Kit

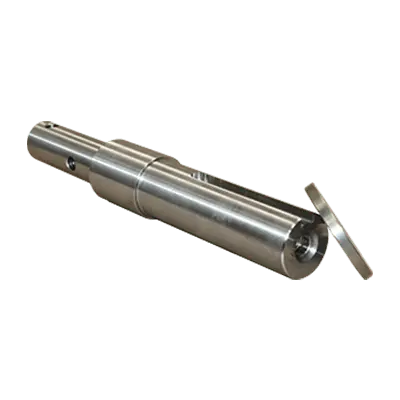

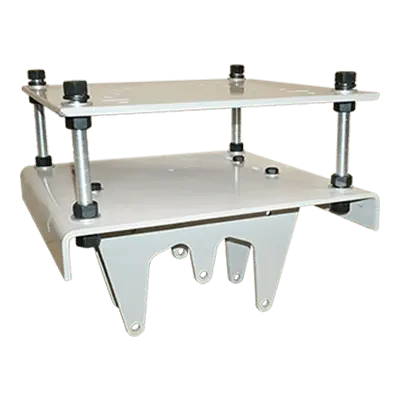

   Drive Shaft                     Motor Mount

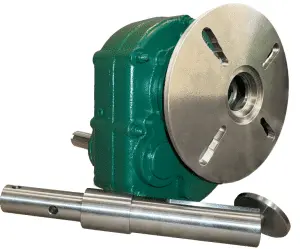

Fortis MXDSC: Screw Conveyor

Fortis MXDSC:

  • MXDSC available in sizes 1-7.
  • CEMA screw conveyor adapter kits for existing MXD units.
  • Converts from standard MXD units, making your inventory more versatile.
  • CEMA standard drive shafts 2-hole & 3-hole





Gearbox
Size		Gearbox
Part Number		CEMA Shaft Size
(in.)		2-Hole Drive Shaft Part Number3 -Hole Drive Shaft
Part Number		CEMA
Adapter
1MSC0109
MSC0115
MSC0125		1-1/2
2
2-7/16
3		SDS1112
SDS12
SDS12716
SDS13		SDS1112L
SDS12L
SDS12716L
SDS13L		MSC01ADP
2MSC0209
MSC0215
MSC0225		1-1/2
2
2-7/16
3		SDS2112
SDS22
SDS22716
SDS23		SDS2112L
SDS22L
SDS22716L
SDS23L		MSC02ADP
3MSC0309
MSC0315
MSC0325		1-1/2
2
2-7/16
3		SDS3112
SDS32
SDS32716
SDS33		SDS3112L
SDS32L
SDS32716L
SDS33L		MSC03ADP
4MSC0409
MSC0415
MSC0425		1-1/2
2
2-7/16
3
3-7/16		SDS4112
SDS42
SDS42716
SDS43
SDS43716		SDS4112L
SDS42L
SDS42716L
SDS43L
SDS43716L		MSC04ADP
5MSC0509
MSC0515
MSC0525		2
2-7/16
3
3-7/16		SDS52
SDS52716
SDS53
SDS53716		SDS52L
SDS52716L
SDS53L
SDS53716L		MSC05ADP
6MSC0609
MSC0615
MSC0625		2-7/16
3
3-7/16		SDS62716
SDS63
SDS63716		SDS62716L
SDS63L
SDS63716L		MSC06ADP
7MSC0715
MSC0725		2-7/16
3
3-7/16		SDS72716
SDS73
SDS73716		SDS72716L
SDS73L
SDS73716L		MSC07ADP

*Stainless Steel and special shafts are available upon special request.

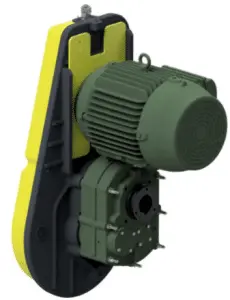

SafeGuard System: SGS

Features/Benefits:

  • MSHA Compliant guarding right out of the box to ensure a safe jobsite.
  • Extremely lightweight polymer belt cover and back guard.
    • Up to 80% weight reduction compared to traditional setups.
  • TensAlign: Precision Machined Rail System
    • Eliminates the opportunity for angular misalignment.
  • Single point tensioning
    • The most consistent belt tensioning option available in the market.
    • Allows for quick & effortless belt tensioning.
  • Simplified torque arm Mounting.
    • Reduces the amount of housing bolts needed to be removed during setup.
  • Ensures belt & sheave life.
                •
